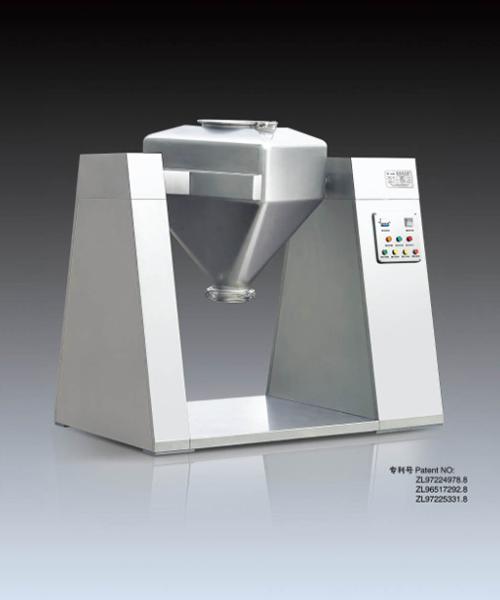

HF Series Powder Granule Mixing Bin Blender

Application
The HF square-taper blender is highly efficient powder raw material and granular material piece of mixing equipment. It is an internationally advanced material mixer used for mixing in medicine (herbal and western alike), chemical mixing (chemical raw materials, coloring matter), light industrial material mixing, and agricultural mixing (seeds, feed additives, other materials). light, and food industries.

MAIN TECHNICAL DATA
Model HF-300 HF-500 HF-1000 HF-1500 HF-2000A
Max.bin volume (L) 300 500 1000 1500 2000
Max. charge volume (L) 240 400 800 1200 1600
Max. charge weight(kg) 150 250 500 750 1000
Mixing speed(rpm) 14 13 12 10 10
Motor power(kW) 1.5 2.2 4 5.5 7.5
Front width *rotate depth *rotate height (mm) 1850*1280*1980 2200*1530*2220 2800*2000*2820 2980*2330*3070 3300*2550*3280
Weight(kg) 600 750 1200 1650 2000
Model HF-3000A HF-4000A HF-5000A HF-6000A HF-7000A HF-8000A
Max.bin volume (L) 3000 4000 5000 6000 7000 8000
Max. charge volume (L) 2400 3200 4000 4800 5600 6400
Max. charge weight(kg) 1500 2000 2500 3000 3500 4000
Mixing speed(rpm) 8 8 8 6 6 6
Motor power(kW) 11 11 11 15 15 15
Front width *rotate depth *rotate height (mm) 3800*3000*3800 4050*3100*3920 4400*3500*4300 4500*3650*4650 4800*3900*4750 5000*4100*4900
Weight(kg) 3000 3500 4000 5000 5500 6000

Features
1. The entire mixer features a novel, compact structure with a great appearance, and even mixing performance. The mixing evenness reaches 99%, with a volume change coefficient of 0.8.
2. This mixer is equipped with a low rotating height, smooth running, reliable performance, and easy operation.
3. The highly polished inner and outer surfaces of the barrel with no dead corners makes material discharge, and blender cleaning easy with no risk of cross contamination, thus ensuring it is in full compliance with GMP requirements.
