Conical Mill, Medical High Purity Nitrogen Generator, Blister Packing Machine, Capsule Polisher
Application

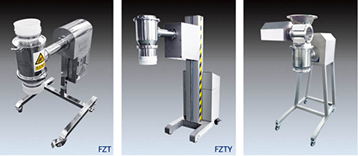

The FZ series grinding and granulating machine is used in pharmaceutical, food and fine chemical proceeding industries. It has reached international advanced levels, and conforms to GMP standards and specifications, with a structure made entirely of stainless steel material.
| Model | FZT-100 | FZB-150(A) | FZB -300(A) | FZB -450(A) | FZB -700(A) | FZB -1000(A) |
| Capacity of cone mill (Kg/h) | 10-100 | 15~150 | 30~300 | 45~450 | 70~700 | 100~1000 |
| Granularity (mesh) | 6-40 | 6-80 | ||||
| Temperature rise of driving seat (℃) | < 30 | |||||
| Speed-adjusting range (rpm) | 100~1450 | FZB series frequency control 300~3600 | ||||
| Motor power(kW) | 0.75 | 1.5 | 1.5 | 2.2 | 3 | 5.5 |
| Overall dimension(L*W*H) (mm) | 850*500*1050 | 720*445*1345 | 810*445*1345 | 920*445*1430 | 1000*500*1530 | 1100*600*1875 |
| The height from ground to discharge mouth (mm) | 600 | 650 | 650 | 690 | 690 | 700 |
Features
1. The conical mill solves issues that arise from material that has been contaminated by the debris of a worn sieve mesh found in pendulum type granulating machines.
2. The unique patented shaft sealing technology ensures no leakage of lubrication oil.
3. Easy to control granularity
4. No retention dead corners, and no material overheating.
5. Less dust, no vibration, low noise.
6. High efficiency, energy saving, large production capacity
7. Attractive appearance, easy to clean
