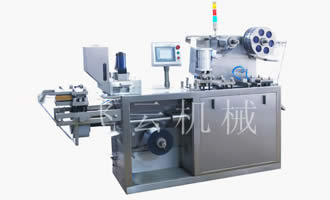

Flat Plate Aluminum Plastic Pack Blister Packaging Machine Flat Plate Aluminum Plastic Pack Blister Packaging Machine

Flat plate aluminum-plastic blister packing machine is a very common machinery used in food and drug industries. Plate-type heating apparatus can heat and soften molded film and then softened molded film can be blowing molded into a blister by compressed air in plate-type molding apparatus. Product is filled into the blister in filling apparatus and delivered to the plate-type sealing for sealing operation.

Detailed Specifications
Project Unit Parameter
Punching frequency Time/min 15-35
Stroke adjustable range mm 40-120 (Adjustable)
Max forming area mm x mm 140×110
Max forming depth mm 25
Main motor power kw 1.5
Up heat power kw 0.8
Next heat power kw 0.8
Heat sealing heating power kw 0.7
Pump volumetric flow m/min ≥0.2
Pump pressure MPa 0.4-0.6
Medicinal PVC specifications mm x mm 0.25×150
Aluminum foil sealing mm x mm 0.02×150
Molding aluminum foil specification mm x mm 0.15×150
Dimension LхWхH 2400×575×1560
Weight 620

Stepless speed regulation is used in flat plate aluminum-plastic blister packing machine and punching frequency is 15-35 times/min. Stroke is adjustable and the range is from 40 to 120mm so this product has convenient adjustment and accurate synchronization. With plate mold and positive pressure forming, this product has the function of printing batch number, creasing and cutting, automatically transmitting aluminum foil and plastic, cutting fragments, completing film, automatic shutting down and alarming. A set of universal feeder is equipped with the machine and the filling percentage can reach 99.8%. Suction interface can be equipped with the feeder thus eliminating dust in the feeding process. Besides that, anastomosis heating is adopted so the required temperature of the heater is greatly reduced and heat loss can be decreased to the greatest extent. With small volume, light weight, compact structure, simple operation and maintenance, flat plate aluminum-plastic blister packing machine is an ideal choice for customers.

Our company is an experienced flat plate aluminum-plastic blister packing machine manufacturer in China. We provide a wide array of products, including high efficiency film coating machine, fully automatic capsule filling machine, capsule sorting polisher and so on.
